Replacement part and tool checklist for matching, shipping, and storage
Replacement part and repair tool checklist for model matching, recalls, labels, dimensions, connectors, shipping damage, test records, returns, and safe storage.
What to take away
- Verify the device identity and part revision before opening the package.
- Check recalls, safety notices, seller identity, and return terms before installation.
- Compare labels, dimensions, connectors, mounting points, and included consumables.
- Reject damaged batteries, cracked insulation, corroded contacts, and deformed tools.
- Record the incoming condition and perform only the maker's permitted pre-installation tests.
The best time to catch a wrong or damaged part is before adhesive is peeled, seals are broken, or the device is opened. This checklist creates a receiving record for replacement modules, batteries, chargers, cables, displays, fans, ports, storage devices, driver bits, meters, and powered tools.

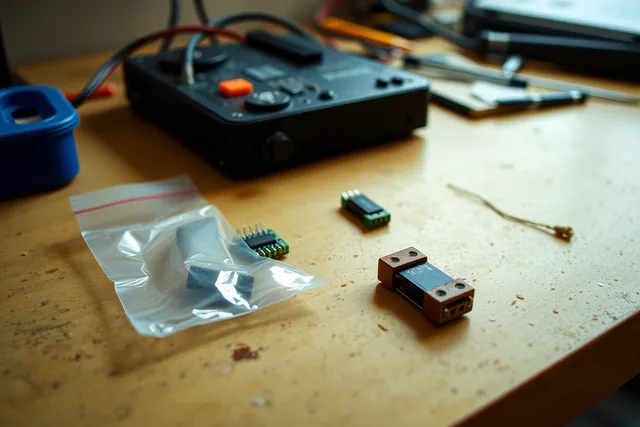

Use the exact service manual as the controlling document. A visual resemblance is not compatibility. The OEM, aftermarket, and salvaged parts comparison explains what evidence should back the part you ordered.
Order record
- Device maker, product name, model, regional variant, and serial recorded
- Existing part number, revision, connector, and markings photographed
- Seller's legal name, address, order number, and contact method saved
- Listing, specifications, included items, price, and delivery promise captured
- Return window, opened-part policy, restocking fee, and warranty saved
- Required calibration, software, adhesive, seals, and single-use hardware identified
Search safety notices using the precise product and accessory identifiers. The EU's Safety Gate rapid alert system runs a searchable database of alerts about dangerous non-food products, with filters for product category, notifying country, and risk type. A recall check is separate from compatibility and condition checks.
Package inspection before opening
- Shipping box photographed on all sides
- Impact, crushing, puncture, water, heat, or tamper damage recorded
- Part label matches the invoice and listing
- Hazard, handling, storage, and installation labels are present and readable
- Serial, batch, date, regulatory, and authenticity markings recorded where provided
- Battery shipment is cool, dry, stable, and free from odor or deformation
Stop if a battery package is hot, hissing, smoking, leaking, swollen, punctured, or unusually odorous. Move people away and follow emergency guidance from local authorities. Do not open the package merely to investigate.
If the package arrives damaged, keep the box and packing material. Photograph every side of the outer box, the shipping label, the carton damage, and the part label before you unpack further. Report visible damage to the carrier within the window its tariff or tracking page states, and ask for a claim reference number.
Contact the seller in writing with the order number, the photos, and the claim reference, and keep the packaging until the claim closes.
Part identity and physical match
With the new part still protected, compare it with the manual and the old part:
New part vs old part match
Check
- Identity
- Part number, revision, region
- Shape
- Outer dimensions, thickness, keying
- Connection
- Connector family, pin count, orientation
- Mounting
- Holes, tabs, posts, screw depth
- Function
- Sensors, antennas, buttons, shielding
- Finish
- Color, coating, window, texture
What must match
- Identity
- Shape
- Connection
- Mounting
- Function
- Finish
| Check | What must match |
|---|---|
| Identity | Part number, revision, capacity, voltage, region |
| Shape | Outer dimensions, thickness, keying, clearances |
| Connection | Connector family, pin count, orientation, cable length |
| Mounting | Holes, tabs, posts, clips, screw depth |
| Function | Sensors, antennas, microphones, buttons, shielding |
| Finish | Color, coating, window, bezel, texture where relevant |
- No bent pins, torn flex, cracked board, missing shield, or loose component
- No corrosion, residue, fingerprints on optical areas, or foreign material
- Cell wrapper and pouch are flat and intact
- Adhesive is shaped for the exact model and has undamaged release liners
- Included screws match profile, diameter, length, head, and thread
Do not modify a connector, drill a mount, fold a cell, trim insulation, or stack adhesive to overcome a mismatch. If a seller supplied the mismatch, the dispute method in the repair quote problems guide applies to parts too.
Recall, seller, and return terms checks
Check more than one jurisdiction when a part has international distribution. The European Commission's product safety portal links to alert systems, and the US Consumer Product Safety Commission publishes recalls at cpsc.gov. Before installation, match the seller's legal name and the return terms in the listing against the order record.
Recall cross-check steps
- Search brand, model, part number, seller
- Compare photographs and batch date ranges
- Read required consumer action, not just title
- Save result date and relevant notice
- Do not install recalled or stop-use item
Tool inspection
Hand tools
- Driver tips are centered, sharp, correctly labeled, and not twisted
- Handle and rotating cap run without wobble
- Tweezers align and close without crossing
- Plastic opening tools have smooth, clean edges
- Cutters, blades, and picks have guards or closed storage
- No rust, cracks, burrs, oil contamination, or loose joints
Electrical and heated tools
- Cord, plug, insulation, strain relief, switch, stand, and enclosure are intact
- Meter leads and probes have no cuts, exposed metal beyond design, or loose shrouds
- Ratings and instructions are legible and suitable for the planned measurement
- Temperature control and rest stand operate as documented
- Battery-powered tool pack is undamaged and charges normally under supervision
Do not repair damaged safety insulation with ordinary tape or use an unverified charger as a test supply. Tool condition standards come from the electronics repair tools buying guide delivery check.
Controlled pre-installation tests
Run only tests the part maker or service manual allows. Static-sensitive parts may need to stay in protective packaging until the ESD area is ready. See the repair bench setup guide to prepare that area.
Displays can sometimes be connected for a short functional test before final adhesive only if the manual permits it and the device is safely supported.
Record test equipment, settings, result, firmware, and any error. Do not press a loose cell, operate a fan against an obstruction, power a bare mains board, or probe an unknown circuit.
Storage conditions
Store incoming parts in their original packaging with the order number and date written on the box, and keep the receiving record with them.
Battery storage: Keep cells and packs at room temperature, out of direct sun and away from heat and water. Makers commonly state a storage range near 15 C to 25 C, so treat that as typical and follow the label. Many packs ship partly charged rather than full.
Never store a swollen, punctured, or leaking pack indoors. Isolate it and follow local hazardous-waste rules.
Adhesive storage: Keep strips and liquid adhesive sealed, flat, and cool. Heat, sunlight, and moisture shorten working life. Note the printed date when the part arrives and use the oldest stock first.
Tool storage: Case or hang hand tools so tips and blades stay protected. Keep electrical tools, leads, and probes dry, coiled without sharp bends. Store battery packs partly charged, with terminals covered and away from loose metal.
Acceptance record
- Part accepted, quarantined, or returned
- Reason and evidence recorded
- Packaging retained through final test
- Removed part labeled and isolated
- Post-installation diagnostic and calibration planned
- Final function, charging, temperature, fit, and safety checks documented
Common questions
Can I open anti-static packaging just to look?
Prepare the ESD-controlled area first. Opening early exposes the part and can affect return eligibility.
Is a matching connector enough?
No. Pinout, voltage, dimensions, firmware support, sensors, and mounting can still differ.
What if the seller says a dented battery is normal?
Do not install a deformed cell. Preserve evidence, isolate the shipment safely, and use the seller or hazardous-material guidance.
Should I discard the old part immediately?
No. Keep it labeled until the repair, calibration, and return period are complete, unless its condition requires an approved hazardous route.
