Getting a new monitor or television ready for real viewing conditions

What to take away

Assemble and secure the display according to its exact manual and weight.
Prove one source and one direct cable before adding docks, receivers, and switches.
Set native resolution, supported refresh, scaling, color mode, and audio deliberately.
Adjust the room and a neutral picture mode before changing advanced controls.
Save known-good settings and test sleep, wake, updates, captions, and every input.

Careful setup removes uncertainty. When ten devices are connected at once, a blank screen can come from the source, cable, switch, receiver, display, power state, or selected input. A direct baseline lets you identify which later change introduced a fault. It also proves the promises that drove the purchase in the monitor and television buying guide.

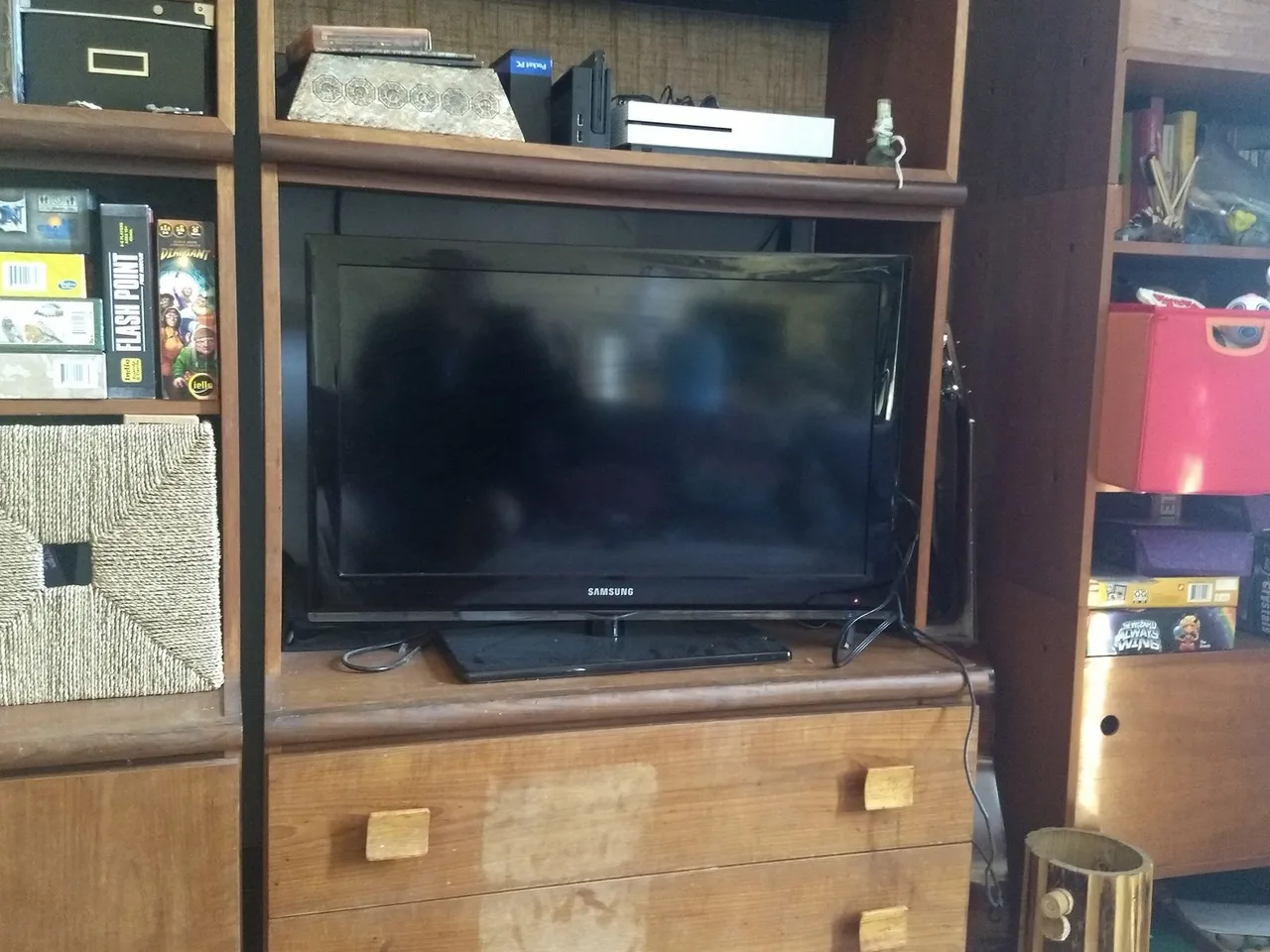

A flat-screen television placed in a living-room cabinet — Media credit: Evan Prodromou photographed A flat-screen television.jpg on June 5, 2020. Wikimedia Commons lists the work under CC BY-SA 4.0. The pictured television and furniture are examples, not installation guidance or recommendations. This media will be removed if the author requests it.

1. Unpack and record

Photograph the box, model label, serial number, panel, included parts, and any damage. Save the receipt, delivery record, warranty, return deadline, and packaging until the display passes all checks. Two similar model numbers can have different stands, ports, panels, or regional tuners.

Move a large screen with the number of people and grip points stated in its manual. Do not lift by the panel surface, twist the frame, or place the screen face-down unless the instructions specify a prepared surface. Keep children and pets away from loose hardware and packing materials.

2. Assemble and secure

Use the supplied screws in the specified positions and depths. A screw that is too long can damage internal parts. A stand must sit fully on stable furniture with no overhang.

For a wall mount, verify the display's VESA mounting pattern and weight against the mount's rated sizes, then the wall construction, fasteners, ventilation, cable clearance, and local requirements. The standard defines several hole patterns with different screw sizes and weight limits, so a bracket that bolts on is not automatically one rated for the screen.

Do not route power or signal cables where they can be crushed, pinched, heated, or pulled. Keep vents open. Anchor a television and its furniture where tip-over risk exists, following the product and anchor instructions.

For a desk monitor, set a provisional height and distance before tightening an arm. Make sure the desk and clamp can carry the full load. Leave enough movement for cable bends without pulling connectors.

3. Start with one direct connection

Disconnect docks, splitters, switches, capture devices, receivers, and adapters. Connect one source directly to one input with a known compatible cable. Turn on the display, select the input manually, then start the source. Confirm a stable standard mode before trying the highest resolution or refresh.

Label both cable ends and record which port supports each feature. A television may reserve audio return or a high-bandwidth mode for selected ports. A monitor may limit refresh when a USB-C link also carries high-speed data. Check the exact manual rather than relying on connector appearance.

4. Set computer geometry

Select the display's native resolution and a refresh rate supported by the source, port, cable, and panel. Set operating-system scaling so text is readable without leaning. If the desktop is cropped or surrounded by a border, check television overscan, aspect ratio, source scaling, and input labeling before accepting a distorted image.

For two screens, identify them, choose extend or duplicate deliberately, arrange their virtual positions to match the desk, and select a primary display. Move the pointer across every boundary. Test sleep and wake several times because docking faults often appear during state changes.

5. Establish a neutral picture

Control room light first. Avoid a bright window reflected in the screen or directly behind it. Choose a neutral cinema, standard, creator, or computer mode rather than the store-demo mode. Disable energy-saving or automatic brightness temporarily while evaluating, then re-enable and assess it in normal use.

Set brightness for the room. Leave contrast, gamma, color temperature, sharpness, local dimming, and motion controls near a documented neutral baseline until there is a specific reason to change them. Excess sharpness can draw halos around text. Motion interpolation can alter film movement. Noise reduction can remove detail from clean sources.

6. Configure HDR as a separate path

Confirm that the source, operating system, application, content, port, cable, and display all support the intended HDR mode. Turn it on only for a controlled test. Compare a known HDR sample and familiar standard-range material. A washed-out desktop may reflect a range or settings mismatch rather than a defective panel. The tablet and e-reader display problems guide makes the same settings-before-hardware point for handhelds.

Wikipedia's page on high-dynamic-range television shows that HDR is a family of formats, including HDR10, HDR10+, Dolby Vision, and HLG, which differ in metadata and in processing such as tone mapping. The chain works only when source, connection, and display agree on a supported format, and the relevant settings live at both ends.

Calibration cannot make a display exceed its hardware. Keep notes or photographs of original settings so an aggressive adjustment can be reversed.

7. Set audio and accessibility

Choose the intended audio output at both source and display. Test speech, music, volume control, mute, lip synchronization, and power behavior. If using HDMI audio return, confirm the required ports and control settings. Start with a simple supported audio format before adding surround modes.

Enable captions and set size, color, background, and position where the platform allows. Test audio description, screen reader, voice guidance, high contrast, remote shortcuts, hearing-device connection, and reduced-motion options as needed. Confirm these settings in the apps and inputs that will be used, not only in the main menu.

8. Update and review privacy

Install firmware through the manufacturer's documented method with stable power and network access. Record the new version. Review automatic updates, microphones, cameras, voice recognition, viewing-data collection, advertising identifiers, account sharing, app permissions, and remote access. Disable services you do not use. The tablet and e-reader setup routine applies the same update and privacy pass to handheld screens.

Set a purchase PIN and child profile if appropriate. Learn how to sign out and factory reset the display before resale or service.

9. Complete an acceptance test

Show solid black, white, red, green, blue, and gray. Inspect the whole panel from the normal seat for lines, stuck pixels, tint, bright patches, dark regions, and physical marks. Use realistic text, sports, film, games, and low-quality video. Test every port, remote button, speaker, network, tuner, accessory, and mounting adjustment. Record the outcomes against the pre-purchase technology checklist while a return remains possible.

Write down the known-good cable, port, mode, and settings. That baseline is the fastest route back when a later device causes trouble.
